Investigate clusering probability in relation to PCA results

Background and summary

Examine the GOM membership probability of the samples that are outliers on the PC1 vs PC2 plot.

Analysis

library(ggplot2)
library(metagenomeSeq)
library(matrixStats)

Load PCA

obj <- readRDS("../data/nasal_GOM.rds")

Load previously computed results for k=2.

fits <- readRDS(file = "../data/count-clust.rds")

Get PCA results

pcaRES <- function(obj,tran=TRUE,comp=1:2,norm=TRUE,log=TRUE,usePCA=TRUE,useDist=FALSE,distfun=stats::dist,dist.method="euclidian",n=NULL,...){
  mat = returnAppropriateObj(obj,norm,log)
  if(useDist==FALSE & usePCA==FALSE) stop("Classical MDS requires distances")
  if(is.null(n)) n = min(nrow(mat),1000)

  otusToKeep <- which(rowSums(mat)>0)
  otuVars<-rowSds(mat[otusToKeep,])
  otuIndices<-otusToKeep[order(otuVars,decreasing=TRUE)[seq_len(n)]]
  mat <- mat[otuIndices,]

  if(tran==TRUE){
    mat = t(mat)
  }
  if(useDist==TRUE){
    d <- distfun(mat,method=dist.method)
  } else{ d = mat }

  if(usePCA==FALSE){
    ord = cmdscale(d,k = max(comp))
    xl = paste("MDS component:",comp[1])
    yl = paste("MDS component:",comp[2])
  } else{
    pcaRes <- prcomp(d)
    ord <- pcaRes$x
    vars <- pcaRes$sdev^2
    vars <- round(vars/sum(vars),5)*100
    xl <- sprintf("PCA %s: %.2f%% variance",colnames(ord)[comp[1]], vars[comp[1]])
    yl <- sprintf("PCA %s: %.2f%% variance",colnames(ord)[comp[2]], vars[comp[2]])
  }
  return(pcaRes)
}

obj <- obj[,order(pData(obj)$GOM)]

pcares <- pcaRES(obj,pch=21,bg=pData(obj)$GOM,main="")

save to output folder.

saveRDS(pcares, "../output/explore-cluster-probability.Rmd/pcares.rds")

Results

7 outliers on PCA plot. All of them below to the second cluster.

all.equal(rownames(pcares$x), colnames(obj))

[1] TRUE

pdata <- pData(obj)
pdata$PC1 <- pcares$x[,1]
pdata$PC2 <- pcares$x[,2]
pdata$pc_outlier <- pdata$PC1 > 20 & pdata$PC2 < -20

all.equal(rownames(pdata), rownames(fits[[1]]$omega))

[1] "186 string mismatches"

omega <- fits[[1]]$omega
omega <- omega[match(rownames(pdata),rownames(omega)),]
all.equal(rownames(pdata), rownames(omega))

[1] TRUE

pdata$gom_prob_group1 <- omega[,1]
pdata$gom_prob_group2 <- omega[,2]

• 7 PCA outliers, all belong to cluster 2, their cluster probability are not borderline.

table(pdata$pc_outlier)

FALSE  TRUE
  190     7

table(pdata$pc_outlier, pdata$GOM)


          1   2
  FALSE 167  23
  TRUE    0   7

cbind(pdata$gom_prob_group1[which(pdata$pc_outlier==1)], pdata$gom_prob_group2[which(pdata$pc_outlier==1)])

             [,1]      [,2]
[1,] 0.0273438612 0.9726561
[2,] 0.0001033176 0.9998967
[3,] 0.2372200486 0.7627800
[4,] 0.3211409734 0.6788590
[5,] 0.3253818129 0.6746182
[6,] 0.0785997584 0.9214002
[7,] 0.0233961031 0.9766039

• Are their borderline probablities at all?

summary(pdata$gom_prob_group2[pdata$GOM==2 & pdata$pc_outlier==0])

   Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
 0.5175  0.6140  0.6835  0.7184  0.8221  0.9998

summary(pdata$gom_prob_group2[pdata$GOM==2 & pdata$pc_outlier==1])

   Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
 0.6746  0.7208  0.9214  0.8553  0.9746  0.9999

The non-outliers in Group 2 are more similar to Group 1.

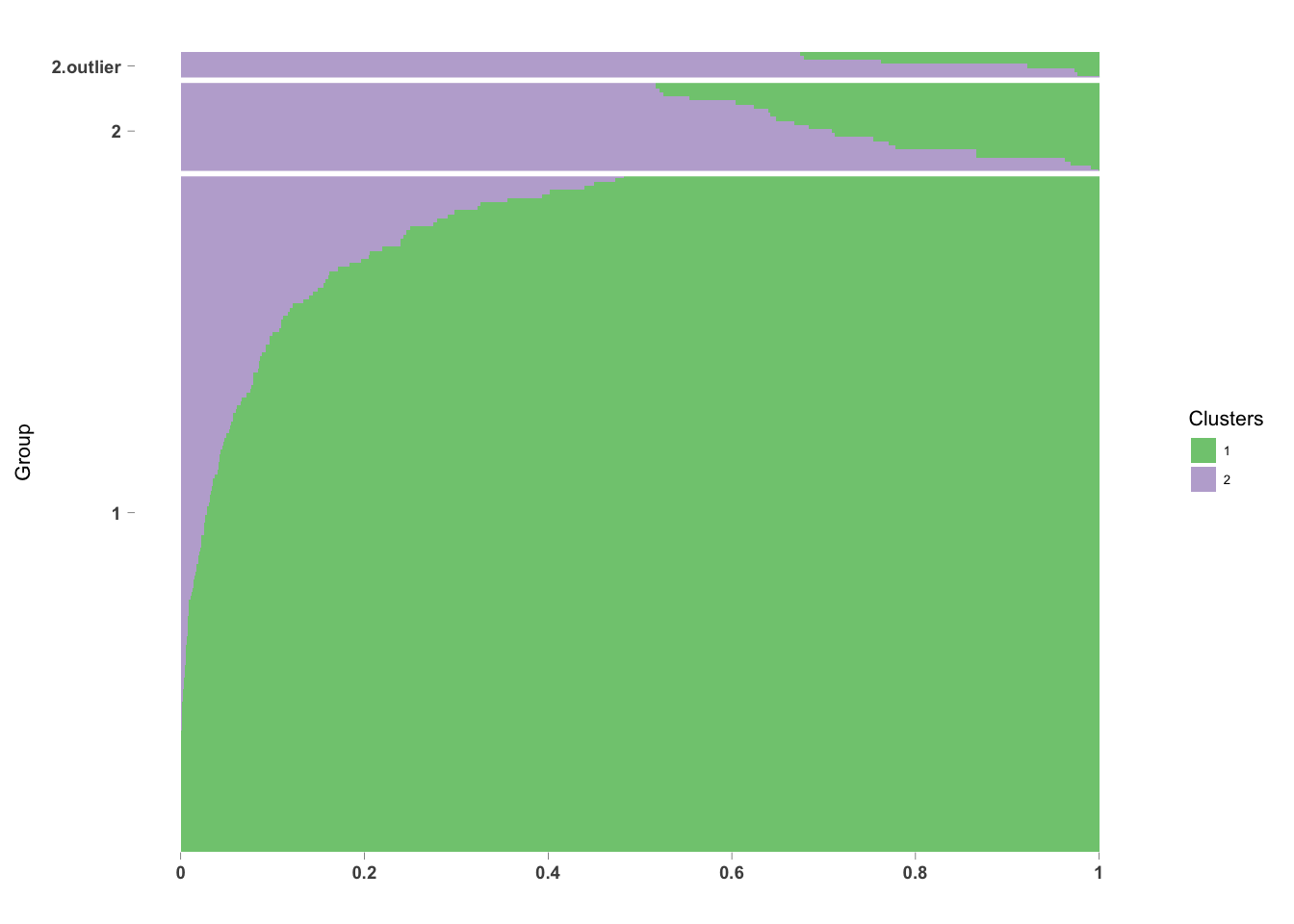

library(CountClust)
newgroup <- pdata$GOM
newgroup[which(pdata$pc_outlier==1 & pdata$GOM=="2")] <- "2.outlier"
annotation <- data.frame(
  sample_id = paste0("X", c(1:NROW(omega))),
  tissue_label = factor(newgroup,
                        levels = c("1", "2", "2.outlier") ) )
rownames(omega) <- annotation$sample_id;

StructureGGplot(omega = omega,
                annotation = annotation,
                palette = RColorBrewer::brewer.pal(3, "Accent"),
                yaxis_label = "Group",
                order_sample = TRUE,
                axis_tick = list(axis_ticks_length = .1,
                                 axis_ticks_lwd_y = .1,
                                 axis_ticks_lwd_x = .1,
                                 axis_label_size = 7,
                                 axis_label_face = "bold"))

Save outlier info.

write.table(data.frame(sample_ID=rownames(pdata),
                       gom_prob_group1=pdata$gom_prob_group1,
                       gom_prob_group2=pdata$gom_prob_group2,
                       newgroup)[order(newgroup, decreasing = T),],
            col.names = T, row.names = F, quote = F,
            file = "../output/explore-cluster-probability.Rmd/outlier.list.txt")

Session information

R version 3.4.1 (2017-06-30)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS High Sierra 10.13

Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] parallel  stats     graphics  grDevices utils     datasets  methods
[8] base

other attached packages:
 [1] CountClust_1.4.1     matrixStats_0.53.1   metagenomeSeq_1.21.1
 [4] RColorBrewer_1.1-2   glmnet_2.0-16        foreach_1.4.4
 [7] Matrix_1.2-14        limma_3.34.9         Biobase_2.38.0
[10] BiocGenerics_0.24.0  ggplot2_2.2.1

loaded via a namespace (and not attached):
 [1] gtools_3.5.0       modeltools_0.2-21  slam_0.1-43
 [4] reshape2_1.4.3     lattice_0.20-35    colorspace_1.3-2
 [7] htmltools_0.3.6    stats4_3.4.1       mgcv_1.8-23
[10] yaml_2.1.19        rlang_0.2.0        pillar_1.2.2
[13] plyr_1.8.4         stringr_1.3.0      munsell_0.4.3
[16] gtable_0.2.0       caTools_1.17.1     codetools_0.2-15
[19] evaluate_0.10.1    knitr_1.20         permute_0.9-4
[22] flexmix_2.3-14     Rcpp_0.12.16       KernSmooth_2.23-15
[25] scales_0.5.0       backports_1.1.2    gdata_2.18.0
[28] vegan_2.5-1        maptpx_1.9-3       picante_1.6-2
[31] gplots_3.0.1       digest_0.6.15      stringi_1.2.2
[34] grid_3.4.1         rprojroot_1.3-2    cowplot_0.9.2
[37] tools_3.4.1        bitops_1.0-6       magrittr_1.5
[40] lazyeval_0.2.1     tibble_1.4.2       cluster_2.0.7-1
[43] ape_5.1            MASS_7.3-50        SQUAREM_2017.10-1
[46] rmarkdown_1.9      iterators_1.0.9    boot_1.3-20
[49] nnet_7.3-12        nlme_3.1-137       git2r_0.21.0
[52] compiler_3.4.1
